Overview

In Lab 4, you will extend the MPC controller from Lab 3 to implement target tracking capabilities. The main difference is that instead of following predefined trajectories, your drone will obtain the position of a target drone in real-time and use the Model Predictive Control (MPC) framework developed in Lab 3 to track the target. We launch two drones in the simulator: cf_1 (the target) and cf_2 (the pursuer). Each drone runs its own instance of the MPC controller. The target drones runs the MPC controller from Lab 3 to track fixed trajectories, whereas cf_2 receives real-time position updates of cf_1 via a ROS2 topic subscription. For this lab, the deliverable includes the new MPC controller node, that tracks a specific target drone. We will use the same simulator for the Crazyflie quadrotor, and also the same controller_pkg ROS2 package that we developed in Lab 3. The new files for Lab 4 are provided in the lab4 folder of the ae740_labs repository.

Instructions for using the files

  1. Pull the latest version of ae740_labs repository to get the Lab 4 files (is the lab4 folder):

  2. Copy the target_tracking_mpc.py file from lab4 folder to your existing ros2_ws/src/controller_pkg/controller_pkg/ directory, that we used in Lab 3. This is important as this file is the equivalent for the crazyflie_mpc.py file and also calls the quadrotor_simplified_model.py and tracking_mpc.py files that you developed in Lab 3.

  3. Inside the ros2_ws/src/controller_pkg directory, create a new folder called launch and add a new launch file launch_lab4_target_tracking.launch..py provided in the lab4 folder. This launch file will launch two drones – one with the target_tracking_mpc.py node, and the other with the crazyflie_mpc.py node.

  4. Replace the existing setup.py file in controller_pkg with the one provided in the lab4 folder. This is important as it ensures that the new launch file can be found and executed correctly.

Instruction for running the target tracking simulation

These steps assume you completed the coding part in the target_tracking_mpc.py file.

Terminal 1: Launch Gazebo SITL with 2 drones (inside ae740_crazyflie_sim directory)

cd crazyflie-firmware
bash tools/crazyflie-simulation/simulator_files/gazebo/launch/sitl_target_tracking.sh -t 1 -p 1 -m crazyflie

Terminal 2: Luanch the Crazyswarm2 server

cd ros2_ws/
colcon build --symlink-install  # if not already built
source install/setup.bash
ros2 launch crazyflie launch.py backend:=cflib

Terminal 3: Launch MPC controllers for both drones

cd ros2_ws/ && source install/setup.bash
ros2 launch controller_pkg launch_lab4_target_tracking.py

Terminal 4: Commands to takeoff and start the target tracking

# Step 1: Takeoff both drones
ros2 topic pub -t 1 /all/mpc_takeoff std_msgs/msg/Empty

# Step 2: Start the tracking simulation
ros2 topic pub -t 1 /all/mpc_trajectory std_msgs/msg/Empty

Note: Sometimes, rarely though, you might get the warning Empty state message., which is because either position or velocity of one of the drones is not properly initialized on the ROS2 server. To resolve, re-run the main commands on terminals 1 and 2 before attempting again.

Deliverable 1 - Complete the Target Tracking MPC Implementation (80 pts)

The new controller node target_tracking_mpc.py has most of the structure same as crazyflie_mpc.py node used in Lab 3. The key differences are summarized below:

Lab 3 (Basic MPC)

  • The main controller node: crazyflie_mpc.py
  • Single drone following predefined trajectories
  • Static reference generation
  • No real-time target information

Lab 4 (Target Tracking MPC)

  • The main controller node: target_tracking_mpc.py
  • Two drones: cf_1 (target) and cf_2 (pursuer/tracker)
  • Real-time target tracking: cf_2 follows cf_1’s position
  • Dynamic reference generation based on target drone’s pose
  • New trajectory type: 'target_tracking'
  • Additional subscriber: Target drone position subscriber

In the target_tracking_mpc.py file, the comments # [TODO LAB 4] indicate where you need to implement the additions for the target tracking functionality, in contrast to the crazyflie_mpc.py file from Lab 3. You can specifically search for [TODO LAB 4] to find the changes. The starter code include the TODO comments from Lab 3 as well, which you can ignore after finishing the Lab3 exercises.

Similarities with Lab 3:

  • Position subscriber for own drone (cf_2)
  • Velocity subscriber for own drone (cf_2)
  • MPC solution path publisher
  • Attitude setpoint command publisher
  • Similar structure for initialization, timers, and MPC solver integration
  • Target (cf_1) runs using the basic MPC controller from Lab 3

Additions for Lab 4:

  • New variable target_name is introduced to specify the target drone.
  • The target tracking functionality is added by introducing a trajectory type 'target_tracking' in the trajectory_function(), where the reference position is set to the latest received target drone position.
  • A new subscriber and callback function is created to listen to the target drone’s position.

Deliverable 2 - Testing and Validation (20 pts)

Add a new trajectory with name lemniscate in the trajectory_function() of crazyflie_mpc.py file. The lemniscate (figure-eight) trajectory can be defined as:

Parameters:

  • a = 1.0
  • b = 0.5 * tanh(0.1 * t) (for smooth start)

Position:

x_ref(t) = x_start + a * sin(b * t)
y_ref(t) = y_start + a * sin(b * t) * cos(b * t)
z_ref(t) = z_start

Velocity:

vx_ref(t) = a * b * cos(b * t)
vy_ref(t) = a * b * cos(2 * b * t)
vz_ref(t) = 0.0

Expected Behavior

  • cf_1 should follow its predefined trajectory (circle, lemniscate, etc.)
  • cf_2 should track and follow cf_1’s position
  • Both drones should maintain stable flight
  • The tracking should be smooth without oscillations

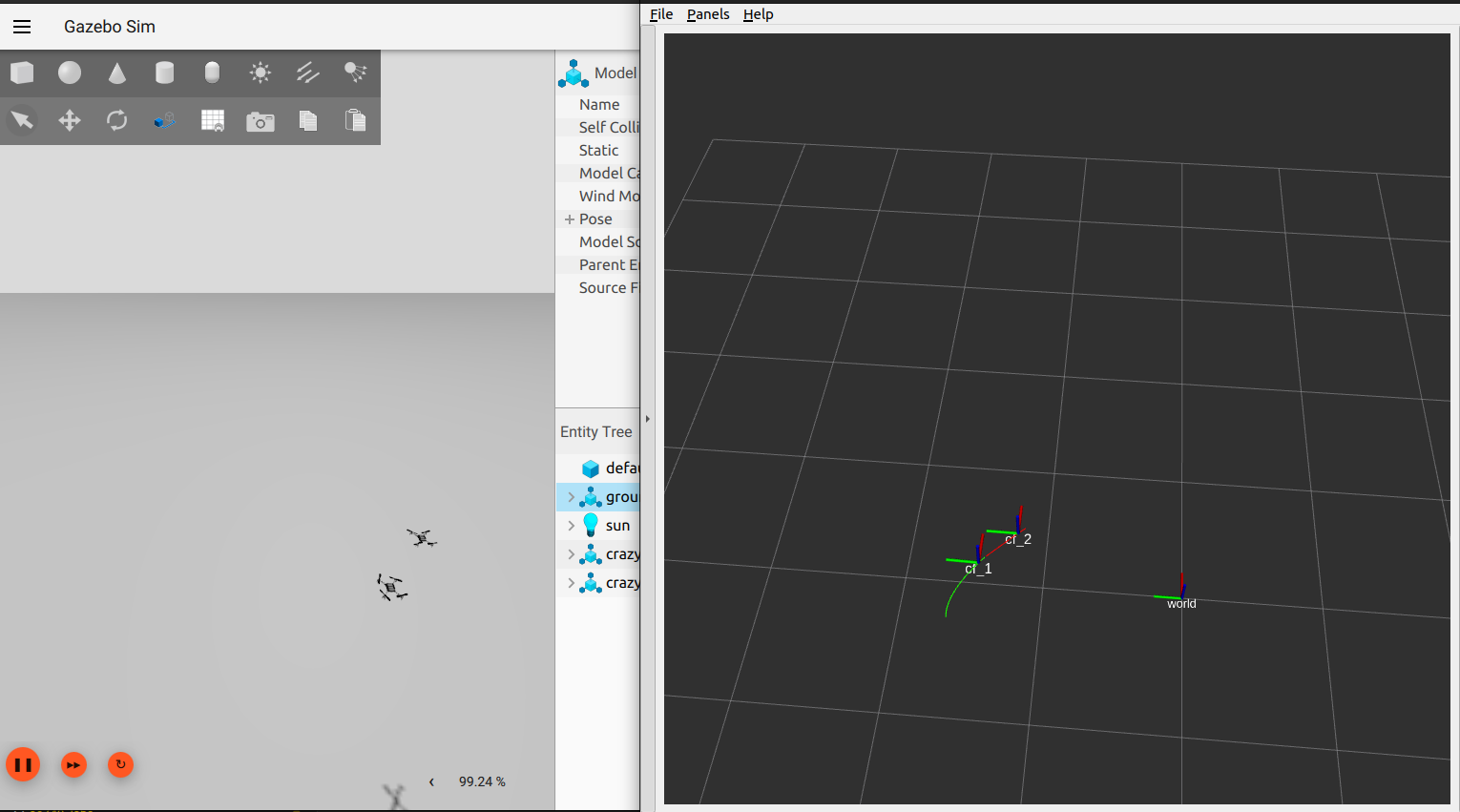

Target Tracking Example

Deliverables

  1. Working code (target_tracking_mpc.py file only) that compiles and runs without errors
  2. Video demonstration (30-60 seconds) showing:
    • Both drones taking off
    • cf_1 following a trajectory
    • cf_2 successfully tracking cf_1
    • Two separate videos for circle and lemniscate trajectories
  3. Parameter tuning documentation explaining any changes made to MPC parameters (changes to number of steps, weights, control rate can be needed for stable tracking)
