Submission

Individual

Create a folder called lab3 that includes your answers (for math-related questions LaTeX is preferred but handwritten is accepted too). Zip the folder and upload on Canvas.

Each student needs to submit their own lab3 folder to Canvas.

Team

Each group should create a new folder called TEAM_<N> replacing <N> with your team number. For example team 2 will name their folder TEAM_2. Please put the source code of the entire controller_pkg package in the folder TEAM_2. Zip the folder and submit to Canvas.

Each team will only need to submit one TEAM_<N>.zip to Canvas.

Additional Instructions: For organizing the submission better, please include a single report (PDF format) inside your folder that includes your answers, explanations, video file names and copy of the Python code that you edit/write. Please make sure to include your team member names and IDs in the report, and follow this format for future lab submissions as well.

Deadline: To submit your solution, please upload the corresponding files under Assignment > Lab 3 by Mon, Oct 13 11:59 EST.

Individual

Deliverable 1 - Modelling and control of UAVs (20 pts)

A. Structure of quadrotors

Two drones example

The figure above depicts two quadrotors (a) and (b). Quadrotor (a) is a fully functional UAV, while for Quadrotor (b) someone changed propellers 3 and 4 and reversed their respective rotation directions.

Show mathematically that quadrotor (b) is not able to track a trajectory defined in position $[x,y,z]$ and yaw orientation $\Psi$.

  • Hint: write down the $F$ matrix (see lecture notes eq. (6.9)) for the two cases (a) and (b) and compare the rank of the two matrices

B. Control of quadrotors

Assume that empirical data suggest you can approximate the drag force (in the body frame) of a quadrotor body as:

\[ F^b = \begin{bmatrix} 0.1 & 0 & 0 \\ 0 & 0.1 & 0 \\ 0 & 0 & 0.2\end{bmatrix} (v^b)^2 \]

With $(v^b)^2= [-v^b_x \mid v^b_x \mid ,\, -v^b_y \mid v^b_y \mid ,\, -v^b_z \mid v^b_z \mid]^T $, and $v_x$, $v_y$, $v_z$ being the quadrotor velocities along the axes of the body frame.

With the controller discussed in class (see referenced paper 1), describe how you could use the information above to improve the tracking performance.

  • Hint: the drag force introduced above is an additional term in the system’s dynamics, which the controller could compensate for explicitly…

Team

Trajectory tracking for UAVs

In this section, we are going to implement the Model Predictive Controller on the Crazyflie software-in-the-loop (SITL) simulator based on Gazebo. This also enables use to deploy our controller on the hardware experiments.

Getting the code

The two main repositories we use are – ae740_crazyflie_sim and ae740_labs Follow these steps to set up your environment and get the required packages:

  1. First, we download the main simulator for the Crazyflie. Clone the repository (assuming your home directory):
     cd ~
 git clone https://github.com/UM-iRaL/ae740_crazyflie_sim.git
  2. We then pull the latest version of your lab repository, that contains the controller package. The updated directory lab3/controller_pkg/controller_pkg contains the files that you need to edit. Pull the latest version using:
     cd ~/ae740_labs
 git pull
  3. Copy the controller package to the simulator ROS2 workspace:
     cp -r ~/ae740_labs/lab3/controller_pkg ~/ae740_crazyflie_sim/ros2_ws/src/

    Now that the simulator has been cloned and your file structure has been setup, you can proceed with the build and installation.

Installation

A detailed installation procedure has been given HERE in the README file of the repo. The basic process includes the following steps –

  1. Python Virtual Environment Setup
  2. Dependencies, which includes (a) System-wide dependencies (using sudo apt install command) (b) Gazebo Harmonic (c) Acados (and it’s Python interface) installation for MPC optimizer (d) Python dependencies (inside the ae740_venv)
  3. crazyflie-firmware build using cmake
  4. crazyflie-lib-python installation inside ae740_venv
  5. Building ROS2 Workspace for the Crazyswarm2 ROS2 server and controller package.

Please follow each step carefully, as the setup process is extensive and essential for successful development. This environment is specifically designed to support controller development for hardware experiments. Later in the course, you will use the same codebase to deploy and test your control algorithms directly on the Crazyflie drone hardware!

You can test the Gazebo SITL firmware and crazyflie_server modules using following commands from ae740_crazyflie_sim directory.

Terminal 1:

bash crazyflie-firmware/tools/crazyflie-simulation/simulator_files/gazebo/launch/sitl_singleagent.sh

Terminal 2:

cd ros2_ws
source install/setup.bash
ros2 launch crazyflie launch.py backend:=cflib

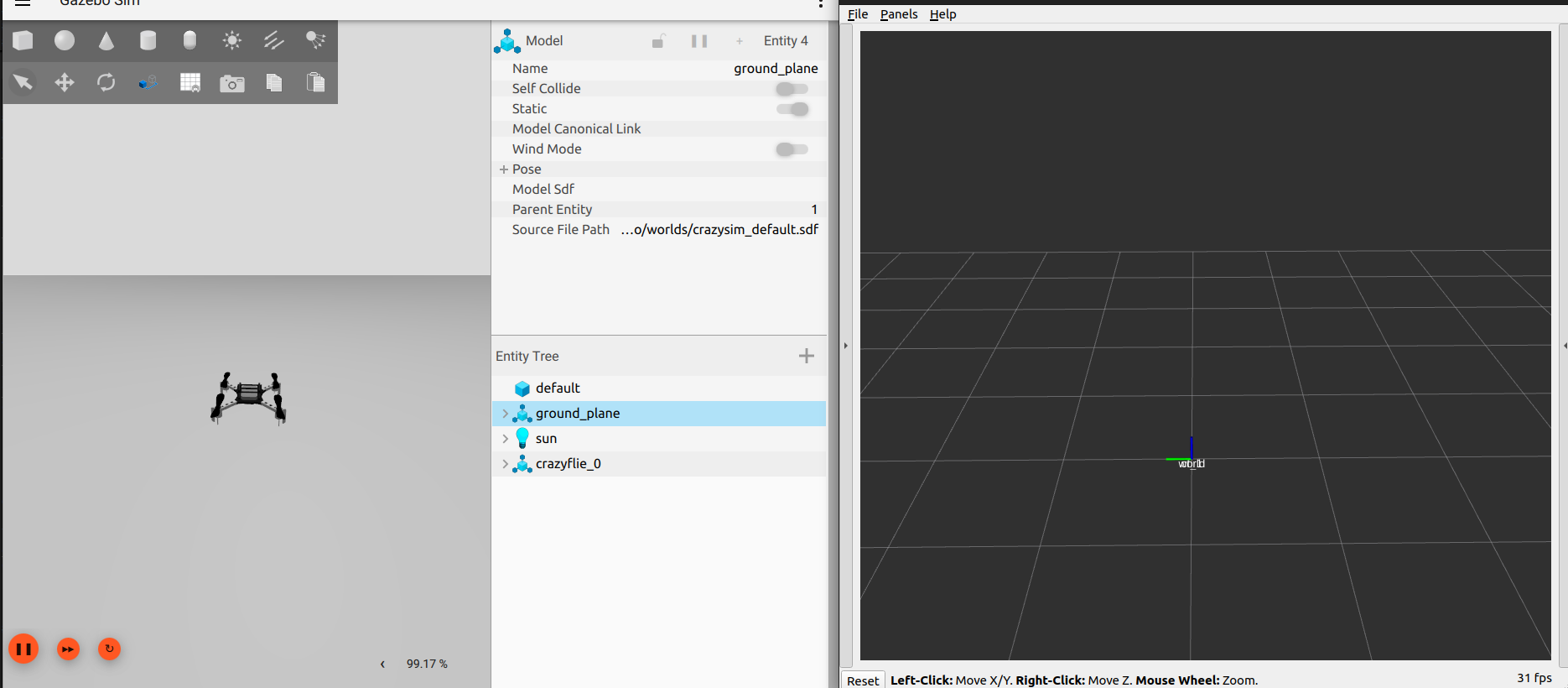

You should see two windows (Gazebo and RViz2) similar to as shown here.

Gazebo-RViz

Refer to the the installation page incase of error, as some of the common error are mentioned here. Feel free to post the questions on the Piazza if you encounter any errors during the installation. You can skip the How to use instructions from here onwards, since you first need to complete the controller files to run successfully.

Deliverable 2 - Model Predictive Control (MPC) (60 pts)

Your main task is to complete the MPC controller implementation in the provided template in ae740_crazyflie_sim/ros2_ws/src/controller_pkg/controller_pkg. There are three main files inside this directory.

  1. crazyflie_mpc.py: This is the main ROS2 node that run the control loop and handle the state/control subscriber and publisher.
  2. tracking_mpc.py: This file contains the MPC optimization problem description, that uses the acados to formulate the problem.
  3. quadrotor_simplified_model.py: This file contains a simpified version of the quadrotor dynamics, which we use in the MPC.

To ensure a smooth workflow and successful implementation, you can follow the recommended sequence below. Each file contains [TODO] sections with specific instructions for completion:

  1. Review the code structure in crazyflie_mpc.py to familiarize yourself with the main objects and methods.
  2. Complete Parts 1–5 in crazyflie_mpc.py, addressing each [TODO] as indicated.
  3. Implement the translational dynamics in the [TODO] section of quadrotor_simplified_model.py.
  4. Define constraints and initialize cost functions in tracking_mpc.py.
  5. Finish Part 6 in crazyflie_mpc.py to complete the MPC solver loop.
  6. Once your code is functional, run the MPC node and use a separate terminal to command take-off and trajectory. Adjust the cost function parameters as needed for optimal performance.

MPC Problem Formulation

The quadrotor dynamics are modeled as a discrete-time nonlinear system:

\[\mathbf{x}_{k+1} = f(\mathbf{x}_k, \mathbf{u}_k)\]

where the state vector $\mathbf{x} \in \mathbb{R}^{9}$ and control input $\mathbf{u} \in \mathbb{R}^4$ are defined as: \(\mathbf{x} = [x, y, z, v_x, v_y, v_z, \phi, \theta, \psi]^T\quad\) \(\mathbf{u} = [\phi_{cmd}, \theta_{cmd}, \dot{\psi}_{cmd}, T]^T\)

The finite-horizon optimal control problem is formulated as:

\[\min_{\mathbf{u}_0,...,\mathbf{u}_{N-1}} \sum_{k=0}^{N-1} \left( \|\mathbf{x}_k - \mathbf{x}_{ref,k}\|_\mathbf{Q}^2 + \|\mathbf{u}_k - \mathbf{u}_{ref,k}\|_\mathbf{R}^2 \right) + \|\mathbf{x}_N - \mathbf{x}_{ref,N}\|_\mathbf{P}^2\]

subject to:

\[\mathbf{x}_{k+1} = f(\mathbf{x}_k, \mathbf{u}_k), \quad k = 0,...,N-1\] \[\mathbf{x}_0 = \mathbf{x}_{current}\] \[\mathbf{x}_{min} \leq \mathbf{x}_k \leq \mathbf{x}_{max}, \quad k = 0,...,N\] \[\mathbf{u}_{min} \leq \mathbf{u}_k \leq \mathbf{u}_{max}, \quad k = 0,...,N-1\]

where:

  • $|\mathbf{v}|_\mathbf{W}^2 = \mathbf{v}^T\mathbf{W}\mathbf{v}$ is the weighted squared norm
  • $\mathbf{Q} \in \mathbb{R}^{9 \times 9}$, $\mathbf{R} \in \mathbb{R}^{4 \times 4}$, and $\mathbf{P} \in \mathbb{R}^{9 \times 9}$ are positive definite weight matrices
  • $N$ is the prediction horizon with time step $\Delta t$ s

Expected Deliverables

  1. Completed mpc_controller.py, tracking_mpc.py and quadrotor_simplified_model.py file with your controller implementation. Include the controller_pkg package that contains all these files.
  2. A video demonstation (screen capture or video) of the quadrotor taking off and moving in a circular trajectory.

Include all your code in the TEAM_<N> folder as specified in the submission instructions.

Please reach out during office hours or post on Piazza for any bugs, errors or code-related questions!

References

  1. Lee, Taeyoung, Melvin Leoky, N. Harris McClamroch. “Geometric tracking control of a quadrotor UAV on SE (3).” Decision and Control (CDC), 49th IEEE Conference on. IEEE, 2010 Link ↩
